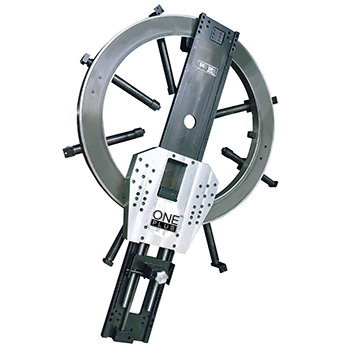

Product Name：HYI INNER MOUNTED FLANGE FACING MACHINE HYI-2000

Features：This machine is designed and researched for the long-distance pipe operation. It is a comprehensive range of precision machine with independent patent that meets various industries requirements. Flange Facer is an internally mounted machine with a durable construction and cover machining sizes range from 50mm up to 2000mm or more. This Facer has a unique power feed long series tool post.

TECHNICAL PARAMETER：
Rated Pressure: P=20Mpa
Rated flux: Q=25L/min
Hydraulic Motor: N=160r/min
Output torque: M=320N. M
Electric Motor Power: P=7.5KW
Electric Motor Rate: N=1450r/min
Timing range: 0-30r/mi

PERFORMANCE：Flange Facer is an internally mounted machine with a durable construction and cover Easy set-up on site and quick adjust concentricity and Flatness, high rigid support frame to assure precision.
Machining sizes range from 250mm up to 3000mm or more.
360 degree power feed tool post for all types of flange facing, groove machining.
The axial-radial feed unit of tool post is adjusted
It could be changed or combined for the base clamping jaws.
Hydraulic unit with low heat and low oil consumption.
Hydraulic or pneumatic drive, wide use range.

TECHNICAL PARAMETER:
Rated Pressure: P=20Mpa
Rated flux: Q=25L/min
Hydraulic Motor: N=160r/min
Output torque: M=320N. M
Electric Motor Power: N=7.5KW
Electric Motor Rate: N=1450r/min Timing range: 0-30r/min

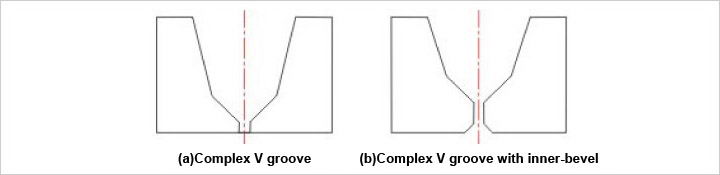

PROCESS GROOVES：Can process V,U,X types and various complex bevels

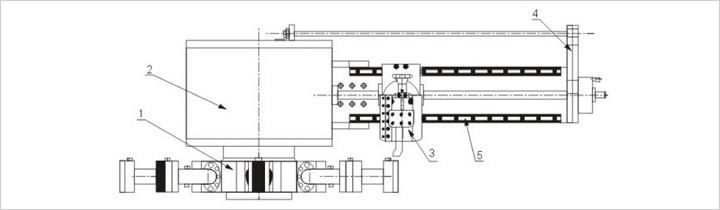

1.swelling block 2.main transmission 3.cutting tray 4.cutter head axis feed mechanism 5.direction mechanism

Automatic positioning mechanism configuration chart：

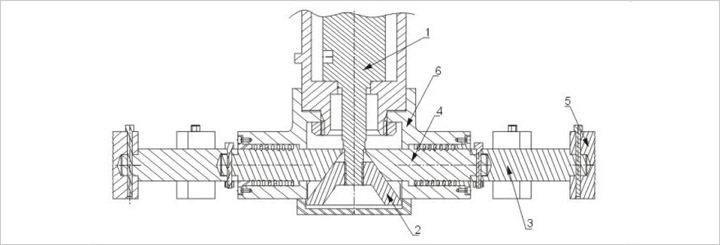

1.Swelling Oil Tank 2.Swelling face chuck 3.Connection Pole 4.Wedging block 5.Swelling block 6.Swelling plate
