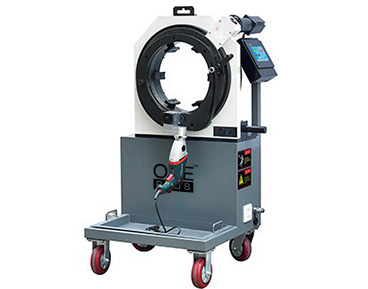

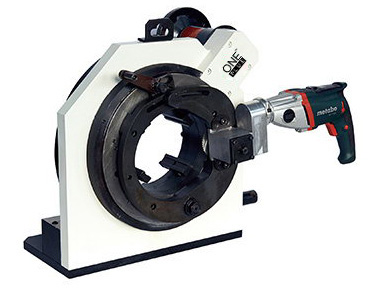

Orbital Pipe Cutting Machine Print E-mail

บริษัท วันพลัส เอ็นจิเนียริ่ง จำกัด OnePlus Engineering Co., Ltd Orbital Pipe Cutting Machineบริษัท วันพลัส เอ็นจิเนียริ่ง จำกัด OnePlus Engineering Co., Ltd Orbital Pipe Cutting Machine

Features: This machine is effective, ideal and reliable solution to precisely square cut and bevel for all types of metal pipes/tubes. All saw-blades pipe cutters with precise, square and clean cut, which save any additional preparation work on the cut-off face for orbital welding. Its automatic deformation-free clamping system avoids pipe deformation. The cut/beveled pipe is free from burr and deformation because of high quality saw blades. It is the best choice for direct S.S pipe welding on catering, pharmacy, Semiconductor Optoelectronics, Biology, chemical industry, oil & gas, Water Treatment, shipbuilding, Electric Power Industry, etc. It also can be efficient, precision cut and bevel at the same time.

PERFORMANCE: Swiftly change blade.Just a few seconds to finish the cut with one single rotation around the pipe.Compact design; small space.Cold cutting process will not influence the quality of the material of the pipes.Free-deformation clamp mechanism, swift clamp pipe Beveling blade for pipe cutting and beveling simultaneously.Can process material: carbon steel, alloy steel, stainless steel, non-ferrous meta.Engineering plastic and cast steel.Electric and Pneumatic motor to drive, wide use range.

Technical Parameter
Automatic Manual Working Range(I.D.mm) Wall thickness(mm) Rotating rate(rpm)
OSK-120 OSE-120 Ф20-121 1-4 150~225
OSK-170 OSE-170 Ф30-170 1-4 150~225
OSK-220 OSE-220 Ф60-225 1-5 150~225
OSK-320 OSE-320 Ф140-330 1-5 150~225
OSK-420 OSE-420 Ф215-420 1-5 150~225
OSK-520 OSE-520 Ф315-520 2-6 150~225
OSK-620 OSE-620 Ф346-630 2-6 150~225
OSK-720 OSE-720 Ф486-760 2-6 150~225

Pipe carrier is not included,if necessary is negotiable.

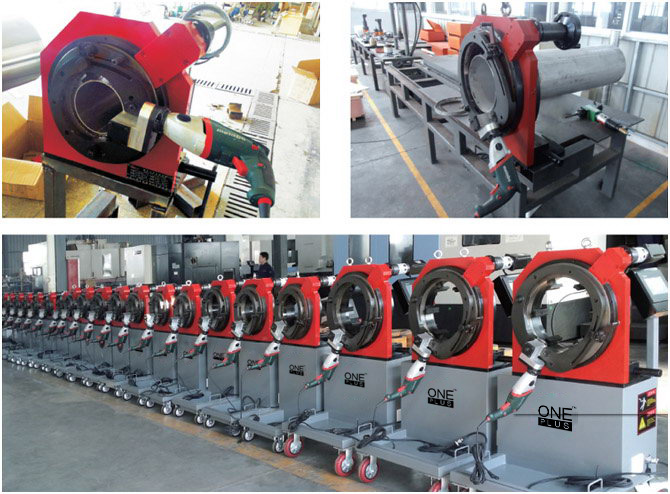

On-Site Process

บริษัท วันพลัส เอ็นจิเนียริ่ง จำกัด OnePlus Engineering Co., Ltd Orbital Pipe Cutting Machine
