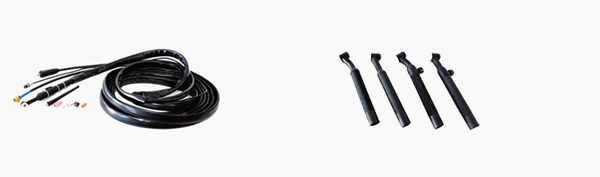

TIG TORCH COMPLETE SET WP-9 ชุดสายเชื่อมทิก
- WITH 7.5M 16SQMM T10-25 JEAN COVER AND PVC COVER
- Connector+air hose M16x1.5 screw size+plug switch+ribbed handle
9 Series Air Cooles TIG Torches |
9 Series Air Cooles TIG Torches |
Description |
Standard No. |
Description |
Standard No. |
WP-9 Torch (Gas and Cable Whole) |
WP-9-1 (4M) |
Large Dia. Gas Lens Body |
45V0204S |
WP-9 Torch (Gas and Cable Whole) |
WP-9-1 (8M) |
Large Dia. Gas Lens Body |
45V116S,1.6mm |
WP-9 Torch (Gas and Cable Separste) |
WP-9-2 (4M) |
Large Dia. Gas Lens Body |
45V64S,2.4mm |
WP-9 Torch (Gas and Cable Separste) |
WP-9-1 (8M) |
Lava Nozzle |
13N08.6mm |
Torch Body |
WP-9 |
Lava Nozzle |
13N09,8mm |
Torch Body (Foexible) |
WP-9F |
Lava Nozzle |
13N10,10mm |
Torch Body (Valve) |
WP-9V |
Lava Nozzle |
13N11,11mm |
Torch Body (Flexible And Valve) |
WP-9FV |
Lava Nozzle |
13N12,13mm |
Torch Body (Pencil) |
WP-9P |
Lava Nozzle |
13N13,16mm |
Long Back Cap |
41V24 |
Long Lava Nozzle |
796F70,5mm |
Medium Back Cap |
41V35 |
Long Lava Nozzle |
796F71,6mm |
Short Back Cap |
41V33 |
Long Lava Nozzle |
796F72,8mm |
Gasket |
598882 |
Long Lava Nozzle |
796F73,10mm |
Large Dia. Gas Lens Insulator |
54N63-20 |
Extra Long Lava Nozzle |
796F74,5mm |
Collet |
13N20,0.5mm |
Extra Long Lava Nozzle |
V796F75,6mm |
Collet |
13N21,1.0mm |
Extra Long Lava Nozzle |
796F76,8mm |
Collet |
13N22,1.6mm |
Extra Long Lava Nozzle |
796F77,10mm |
Collet |
13N22M,2.0mm |
Ceramic Nozzle |
53N58,6mm |
Collet |
13N23,2.4mm |
Ceramic Nozzle |
53N59,8mm |
Large Dai. Gas Lens Collet |
13N20L,0.5mm |
Ceramic Nozzle |
53N60,10mm |
Large Dai. Gas Lens Collet |
13N22L,1.6mm |
Ceramic Nozzle |
53N61,11mm |
Large Dai. Gas Lens Collet |
13N23L,2.4mm |
Ceramic Nozzle |
53N61S,13mm |
Collet Body |
13N25,0.5mm |
Large Dai. Ceramic Nozzle |
57N75,10mm |
Collet Body |
13N26,1.0mm |
Large Dai. Ceramic Nozzle |
57N74,13mm |
Collet Body |
13N27,1.6mm |
Large Dai. Ceramic Nozzle |
53N88,16mm |
Collet Body |
13N27M,2.0mm |
Large Dai. Ceramic Nozzle |
53N87,19mm |
Collet Body |
13N28,2.4mm |
Swwitch (with wire) |
|
Gas Lens |
45V41,0.5mm |
Handle |
105Z55 |
Gas Lens |
45V42,1.0mm |
Cable Assembly |
|
Gas Lens |
45V43,1.6mm |
Cable Cover |
|
Gas Lens |
45V43M,2.0mm |
Valve Stem |
VS-2 |
Gas Lens |
45V44,2.4mm |
|
|
|
